UnixWare ® 7.1.1
Departmental Edition

Delivers the Power and Reliability of UNIX Systems with the Performance and Economy of Intel Platforms

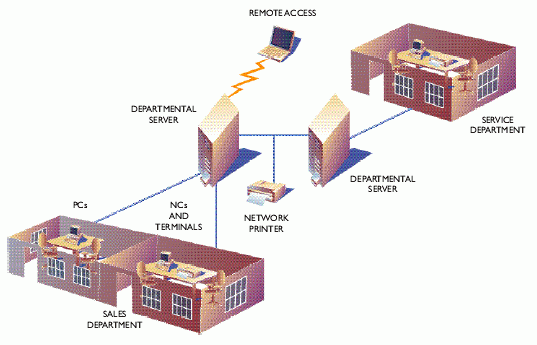

Sample Departmental Server Deployment

The UnixWare® 7 Release 7.1.1 Departmental Edition operating system is an advanced network computing server that brings the power and reliability of UNIX systems to departmental database and applications servers for medium and large business computing. Designed to deliver excellent performance on standard servers exploiting the Intel® Pentium® processor family, the Departmental Edition provides exceptional value by maximizing IT investment and ensuring freedom of choice.

The Departmental Edition provides integrated support of diverse clients. The UnixWare 7 Webtop offers a browser interface for use by all client types, enabling seamless access on mixed-client networks. UnixWare 7 enables access from any client – terminals, NCs and PCs – without additional client-side software. UnixWare 7 also provides a broad range of integrated server features such as the Netscape FastTrack Server,™ a Java runtime environment, Windows file and print services and system backup. This network computing platform helps enable businesses to be more competitive through the productivity and cost benefits of web-enabled applications without forcing a complete IT revolution or rendering existing clients obsolete.

The Departmental Edition makes a server easy to deploy, manage and maintain with point-and-click SCOadmin. The server is easily managed from anywhere using a web browser via the integrated UnixWare 7 Webtop functionality and enables complete remote control with server-group and distributed server management features. System management tools improve administrator productivity and maximize system uptime while drastically reducing total cost of ownership. With built-in availability and reliability features that protect against hardware failures, it is a highly dependable platform for running departmental applications that automate business processes or for sharing business-critical information.

This next-generation operating environment provides complete flexibility in choosing the best application architecture and the right clients for maximizing the benefits of IT investment. Fully compliant with open industry standards, Year 2000 supported and EURO ready, its core components such as the filesystem and system libraries are 64-bit ready. UnixWare 7 is a strategic platform that is widely supported by the industry's leading OEMs and ISVs, ensuring easy migration from existing platforms and maximum investment protection.


UNIXWARE 7.1.1


PDF version of this datasheet

Operating System

  • SVR5 symmetrical multiprocessing, multi-user, multi-threaded system
  • Licensed for 2 processors (expandable to 32 using Processor Upgrade license packs)
  • 25 Network User Licenses (optional add-on 10, 25, 100 and 500 user license packs)
  • 4 GB main memory (RAM) (optional upgrades to support 16 GB, 32 GB and 64 GB RAM)
  • Includes compliance with XPG4, XPG4.2, SVID 4.2, POSIX 1003.1 and 1003.2 and FIPS-151-2 standards specifications. Binary compatibility for previous UnixWare 7 releases, SCO® UnixWare 2.x and SCO OpenServer™ from SCO applications
  • Year 2000 supported, EURO ready and UNIX 95 compliant

RAS Services

  • 1 TB files and file systems with capability for over 78,600 TB total capacity
  • High-performance, multithreaded, fault-resilient journaling file system with virtual file system support
  • Built-in disk spanning
  • IP failover with NIC online restart and auto-start
  • Supports Hot Swap devices, Multipath I/O, I2O and Hot Plug PCI

System Management and Serviceability

  • Fast installation with hardware auto-detection, from Bootable CD-ROM or over a network, and Upgrade Wizards
  • Auto-tuning kernel, integrated real-time performance monitor and system activity reporting
  • Software RAID and Online Volume Management via optional UnixWare 7 Online Data Manager add-on
  • Automated, unattended sever backup/restore with ARCserve®IT from Computer Associates v6.6
  • Enterprise manageable with SNMP MIB II support and graphical Intranet Manager
  • Desktop Management Interface (DMI) API for DMI management station control administration
  • UnixWare 7 Webtop provides application and administration access

Internet and Network Support

  • Bundled Netscape FastTrack Server™ and Netscape Communicator™ 4
  • Apache Web Server, Squid Proxy Server
  • Supports ISDN, 100mbps/1gbps Ethernet, FDDI, and Fast Ethernet devices
  • Java™ runtime environment and JDK™
  • TCP/IP with high performance extensions, multicast support, IPv6 APIs, IPX/SPXII, TPI NetBIOS
  • Multi-link, multi-domain PPP with DHCP, address allocation servers (AAS) and fast modem support. Supports up to 256 links and PPP over ISDN
  • Routing and gateway capabilities with RIPv1, RIPv2, OSPF, EGP, and BGP support
  • Integrated NetWare® UNIX Client, DHCP and bootp client and server support, and dynamic DNS
  • Multi-domain Sendmail, scalable message store, SMTP, MIME, POP3, IMAP4, LDAP directory server
  • Bundled RealNetworks® client and server for Internet streaming multi-media

File and Print Services

  • Windows (SMB) and Windows NT® file and print services with SCO VisionFS™
  • Advanced Windows NT Domain control and File and Print Services via optional AFPS add-on
  • NFS® (with NIS) and NUCFS (NetWare)
  • Optional NetWare Services (NetWare File, Print and Directory) add-on for NetWare clients

Security

  • C2-level security capability with predefined, selectable security profiles for maximum to low security
  • Powerful auditing and accounting tracks system access and security breaches
  • Identification and authentication, Discretionary Access Control and Access Control Lists
  • Trusted Control Facility for tightly controlled system owner and subsystem administrator authorizations
  • Static packet filtering and TCP Wrappers for network security

System Requirements

  • Supports PCI, I2O, EISA, ISA, MCA, PCMCIA systems with Intel® Pentium®, Pentium Pro, Pentium II, Xeon™, Pentium III, and 80486DX processors with supported network adapter (for networked installations).
  • Requires CD-ROM or network installation (requires another UnixWare 7 system).
  • Requires minimum of 500 MB free disk space. Recommended primary disk 1 GB.
  • 32 MB RAM minimum. 64 MB RAM recommended for CDE and other graphical applications.
  • SuperVGA adapter and monitor with at least 800x600 resolution required for graphical desktop.
  • Serial, bus or keyboard (PS/2-compatible) mouse recommended.

UnixWare 7 Editions Include
