The Absolute Beginner's Guide to Kdevelop

The Why

The What

[ Fig 1: Graphic of Final Application]

The How

Start up Kdevelop

• If installed correctly, a simple typing of Kdevelop at the prompt will do the trick. However, it is VERY IMPORTANT that the user environment variable PATH has /usr/local/bin and /usr/local/kde/bin set as its first paths to search
• Note that when run for the first time some Kdevelop preferences are set and may require some user interaction

Create A New Project

• When Kdevelop is run for the first time a prompt is displayed to create a new project. For subsequent runs a project can be created by selecting Project->New from the menu bar. The dialog in Fig 3 is displayed. Since we are creating a very simple application, select "KDE->Mini" and press "Next >>".

• Now the fill in the general information (Fig 4). Name the project FirstHello. Deselect all the toggles, except "generate sources and headers" and press "Next >>".

• Ignore the version control step (Fig 5) as this is intended for production and large projects and press "Next >>"

• The next two steps (Fig 6 and Fig 7) can also be skipped. They allow users to specify what information and licensing agreements are to be put into the beginning of generated header and code files. So press "Next >>" twice to proceed to the last step of creating a new project

[ Fig 7: Project Code Template]



• The last step of creating a new project is to generate the skeletal structure for your application (Fig 8) including source code, configuration and make files. To create the project press "Create". If any errors occur during this creation phase, take note of them and try figure out what might be the problem. If the error "configure: error: Qt-1.4 (libraries) not found. Please check your installation! " is displayed do not worry as this will be tackled in the very next step

Configuring the Project

• This step is only necessary if the error message "configure: error: Qt-1.4 (libraries) not found. Please check your installation! " was displayed during the project creation. Otherwise proceed to "A Quick Overview"
• This error occurs due to the existence of both the X11R5 and X11R6.1 graphic installations. To correct the problem start up an xterm window and proceed with the following steps:
• change to the directory where the project has been created, something like "cd /home/user/firsthello". Note that the directory has been renamed to the lowercase version of the project name
• Edit the file "configure" with your favorite UNIX editor, such as "vi configure"
• Now remove all the lines that contain any reference to X11R5 and save the file
• Go back to Kdevelop and select Build->Configure. A dialog (Fig 9) is shown. Enter "i586-sco-svr4" and press "OK"

• If the configuration did not go smoothly this time, help is needed beyond the scope of this tutorial!

A Quick Overview

• Kdevelop is made up of various components
• Class and source file browsers
• A context sensitive editor
• A status window reporting messages and errors
• A dialog editor (more on that later)
• An integrated debugger (currently utilizes gdb to do the work)
• Tools such as an icon editor (Kiconedit) and a painting tool (Kpaint)

Creating the Dialog Components

• Now to create the visual contents of the program
• Click on  or select the menu item View->Dialog Editor to start the dialog editor
• Click with the right mouse button on the FirstHello in the Dialogs Tab and select New Dialog
• The New Dialog dialog will appear. Select "Qt/KDE Dialog (*.kdevdlg)" and name the dialog widgetMain.kdevdlg (Fig 11). Press Ok to create the dialog

• The new dialog is now ready for creation. The dialog editor should look like (Fig 12)

• Now click the Widgets Tab to display the available widgets that can be used to create the dialog (Fig 13)

• Click the label widget  to add a label widget to your dialog
• Select the label in the Widget Editor (Fig 14)

• In the Widget Properties select General->Text and type in "Hello World" replacing the default label name "label" (Fig 15). Note that the name of this label widget is "QLabel_1"

• Click on Appearance->Font in the Widget Properties. The Font Dialog pops up (Fig 16) and select a large size (48 or larger) and a bold weight and press "Ok".

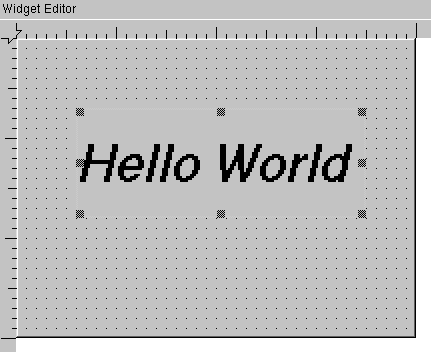

• Resize and move the Label widget to in the widget editor to be roughly in the center of the editor with all the text visible (Fig 17)

• Now create a button widget by clicking on  in the Widget Tab
• Move the button in the widget editor to just below the "Hello World" label
• In the Widget Properties select General->Text and enter "Quit". The button should now display Quit
• Note that the name of button widget is "QButton_1"
• Click on Appearance->Font in the Widget Properties and in the Font dialog select a bold weight and a size of 14
• The Widget Editor should now look like (Fig 19)

• Although the widgets have been created, no source has been created as yet. Press Build->Generate Sources or . The Generate Dialog pops up
• Select QWidget in the Dialog Class, as we are creating a widget (the main application widget has already automatically been created for us by Kdevelop)
• Still in the Generate Dialog, enter "widgetMain" in for the class name. The names for the header, C++ and data files should automatically be renamed as well (Fig 20)

• Press Ok to generate the source code for the widget
• The graphical contents of the application have now been created!

Putting it all together

• Exit the dialog editor by pressing
• Click the LFV Tab and expand the tree to see all the files that now form part of the application
• Press , F8 or Build->Make to build the application
• If no errors occurr, the application has been successfully created. If errors have occurred get help!
• Press , F9 or Build->Execute to run the application (Fig 21)

• Hold on! Where are the Quit Button and and Hello World Label widgets? We still need to hook their code to the actual application
• Click CV Tab and click with the right mouse button on the FirstHello class and select "Add member function"
• The Add class member dialog pops up. Now enter "void" for the Type of the class member. This is the return type of the function
• For the declaration, type "addWidgets (KApplication *a)" and press Ok. This generates the code for the addWidgets function of the FirstHello class
• The edit window now displays the newly created member function FirstHello::addWidget (KApplication *a)
• Add "#include <widgetmain.h>" for the definition of widgetMain, our generated widget class
• Add the following code so that the contents  now look like:

FirstHello::FirstHello(QWidget *parent, const char *name) : QWidget(parent, name)
{
}

FirstHello::~FirstHello()
{
}
/**  */
void FirstHello::addWidgets (KApplication *a){
    widgetMain *new_widgets = new widgetMain (this, "Widgets");

    new_widgets->setupQuit (a);
}


• Basically the code creates the widgetMain class which sets up the label and button widgets and calls, the yet to be created widgetMain member function, setupQuit
• Now in the CV Tab right click on widgetMain and select "Add member function"
• In the Add class member Dialog, enter "void" for Type and "setupQuit (KApplication *a)" for the declaration
• Press Ok to generate the code for the setupQuit member function
• Now add a line of code to the setupQuit function so that is looks like:

• The QObject::connect function sets up that a signal is sent from the quit button (QPushButton_1) when it is clicked to the application's quit () function. This ensures that when the Quit button is pressed the application exits gracefully
• Now click LFV Tab and under FirstHello->Sources click on main.cpp
• Add the following two lines to main, so that the main function now looks like:

  FirstHello *firsthello = new FirstHello();
  a.setMainWidget(firsthello);
  firsthello->resize(400,300); // New line 1
  firsthello->addWidgets(&a);  // New line 2
  firsthello->show();

  return a.exec();
}

• The first line of code resizes the FirstHello widget to be the same size as the area used by the button and label widgets
• The second line of code adds the button and label widgets to the FirstHello widget which forms the graphical base of the application
• Now press
• The compilation should fail with errors reported in the file widgetmain.h
• In the messages window click on the line:

• The editor will now display the file that is causing the problem
• The problem is that KApplication is not defined. To solve this, add a new include line "#include <kapp.h>" to widgetmain.h
• Note that nothing should be typed between the comments:

.. code ..

//Generated area. DO NOT EDIT!!!(end)


• As this area is likely to be automatically updated by Kdevelop and may destroy anything typed or changed between them
• Now Select  to build without errors. If errors do occur they must be solved to continue with the tutorial
• Once successfully made, press  to execute the application (Fig 22)

A Little Bit of Art

• As a quick extra, add a bit of art to the application, select Tools->IconEdit to invoke the icon editor
• Create a new icon of 32x32 pixels (Fig 23) and save it in the firsthello/firsthello/ directory as artpic.xpm

• Now press  to get to the dialog editor
• In the Widget Editor select the "Hello World" label widget and in the Widget Properties select Appearance->BgPixmap and set the background pixmap to artpic.xpm. The background of the label widget should now update to a matrix of the icon image
• Now press  to update/generate the widget code
• Select  and then  to to make and execute the application (Fig 24)
